New to 3D concrete printing? Start with the basics →︎

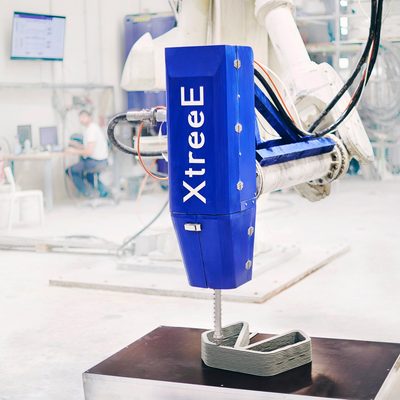

xHEAD
The xHEAD is the core of your 3D printing system. From single-component to multi-admixture configurations, each level unlocks new capabilities in material control and print quality.
Where should your printer’s intelligence live?
That’s the real question behind “1K or 2K”: inside the material, or in how the system is controlled. The xHEAD 2K also runs in 1K mode: you choose, and you can move that choice whenever a project calls for it.
How many admixtures are injected at the nozzle? This determines your level of material control.
1K Mono
No admixture at the nozzle. The material is ready to print without modification. The paste is at the limit of pumpability - it must hold its shape immediately.
2K Multi
1 admixture (setting accelerator). The paste is liquid and self-placing - easy to pump with no risk of setting in the pipes. The accelerator freezes the shape instantly at the nozzle.
Two upgrade paths to take your production to the next level.
Adapt Upgrade
The first admixture controls setting. The second adds a functional capability. Same head, different calibration.
Color
The second admixture colors the material on demand. Automated digital color precision. Full aesthetic freedom.
Control
The second admixture modifies rheology at the nozzle. Maximum control over consistency and performance.
Sprint Upgrade
By placing flow control directly at the print head, full control on material flow is enabled.
Start & Stop
On/off flow control at the nozzle. Hollow structures with simple toolpaths.
Dynamic Flow
Variable flow rate synchronized with robot speed. Print fast without quality loss.
Pick 1K or 2K, add Sprint and Adapt, and watch the head evolve.
xFEED
The xFEED 3.0 delivers material from the mixer to the print head reliably and consistently. Purpose-built for 3D printing, fully integrated with XtreeE Control.
The XtreeE connected pumping solution for 3D printing.

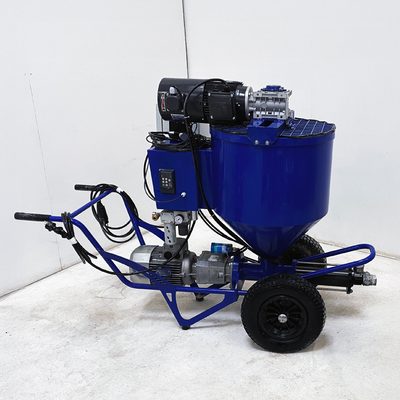

xFEED 3.0
Purpose-built pump designed for 3D printing. Fully integrated with XtreeE Control for real-time monitoring and adjustment.
Connect your own Pump
Interface your existing concrete pump with the XtreeE extruder and ecosystem.
Manage the delivery of admixtures to the print head.
Limited
Basic admixture delivery. Manual setup and adjustment.
xADP
Automated admixture dosing with safe storage, precision stirring, and full connectivity to the XtreeE ecosystem.
xMIX
Choose your material source, mixer type, and feeding system. Three decisions that define your mixing workflow: from simple premix to fully automated custom formulation.
How do you mix your material?

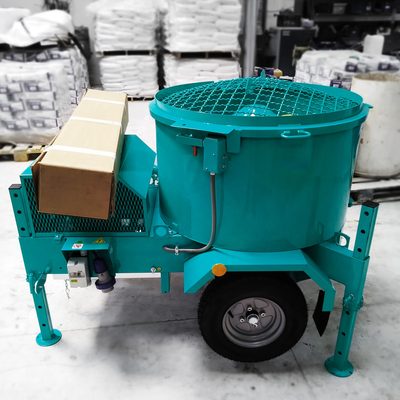

Batch mixer
Adjustable per batch. Works at any scale. Better flexibility, quality and control.
Continuous mixer
Simplicity and lower machine cost with native powder dosing. Requires a calibrated premix. Very little adjustment = less control.
Connect your own Mixer
Connect your existing batch or continuous mixer to the XtreeE ecosystem.
Where does your material come from?
Premix on-shelf
Fast, guaranteed by the supplier.
Custom formulation
Total freedom. Must be calibrated, homogeneous and dry.
How is powder delivered to the mixer?
Manual bags
Minimal investment. Labor-intensive. Always available regardless of mixer choice.
Dosing silo
Automated powder dosing. Industrial grade precision for batch production.
Storage silo
Bulk storage. Continuous feed for continuous mixing.
Add automated dosing to your mixing line.
Automated dosing
Automation layer for liquid and/or solid dosing. PID-regulated, sensor-driven. Applicable on batch or continuous.

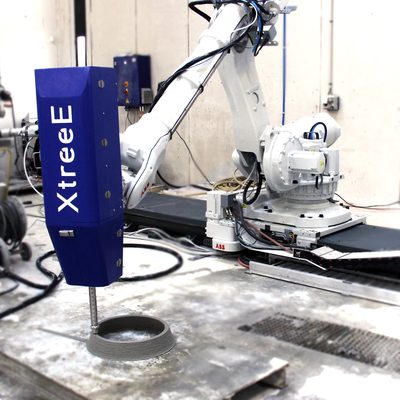

Robot ABB
ABB 6-axis robots recommended by XtreeE for full ecosystem integration. Available new or refurbished, with track, pedestal, and arm extension options.
ABB 6 axes robots recommended by XtreeE for full ecosystem integration.
New 6 axes robot
Brand new ABB robot for maximum reliability and full feature integration with the XtreeE ecosystem.
Refurbish 6 axes robot
Refurbished ABB robot offering the same integration capabilities at a lower investment point.
Connect your own Manipulator
Use your own robot or gantry, integrated with the XtreeE ecosystem.
Software Suite
An end-to-end software suite covering the full 3D printing workflow: design, slice, simulate, print, and analyze. From geometry to production monitoring.
XtreeE Slice
XtreeE Slice+
Everything in Slice, plus:
Installation Services
From physical setup to safety compliance and certification, XtreeE supports your installation journey with flexible service packages tailored to your needs.
Ready to use (DIY)
Self-service approach. Documentation, online support, getting-started guide.
Each branch can be selected independently. They are not sequential - combine as needed.

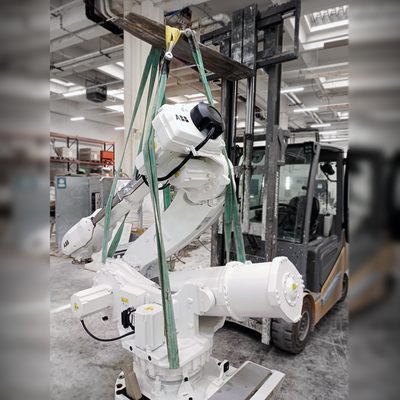

Physical Installation
Installation-only pack
Project management, Factory acceptance tests, Installation & Commissioning.
Pack Serenity
Project management, Factory acceptance tests, Installation & Commissioning, Initial training, Commissioning with a print.
Safety Equipment
Level 1
Basic physical protections.
Level 2
Light curtains + physical protections.
Level 3
Full safety enclosure with fencing. Separation of the robot workspace. Maximum protection for operators.
Certification
Pack Certification
Robot + fences + training + project management. Fully CE-certified production cell.
Healthcare & Support
XtreeE does not just sell machines. We partner with you for the long run. From essential remote monitoring to full Healthcare+ with XtreeE Data Intelligence.

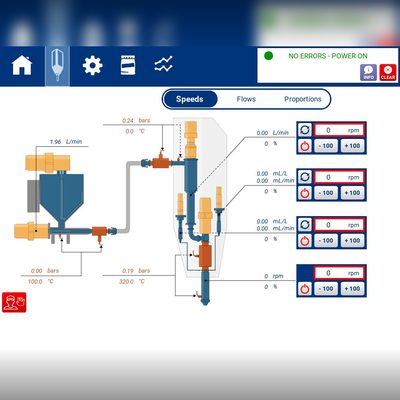

XtreeE Control (HMI)
Essential
Healthcare
Healthcare+
Connect your own

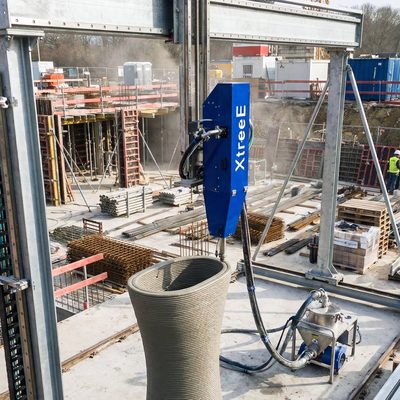

Already have a robot, mixer, or pump? XtreeE can integrate with your existing equipment. Our retrofit solutions bridge your current infrastructure with our 3D printing ecosystem.
Connect to your robot
ABB: Sync (Level 2). KUKA: Non-sync (Level 1). Others: Independent (Level 0).
Connect your mixer
Connect your existing batch or continuous mixer to the XtreeE ecosystem.
Connect your concrete pump
Interface your pump with XtreeE extruder and ecosystem.
